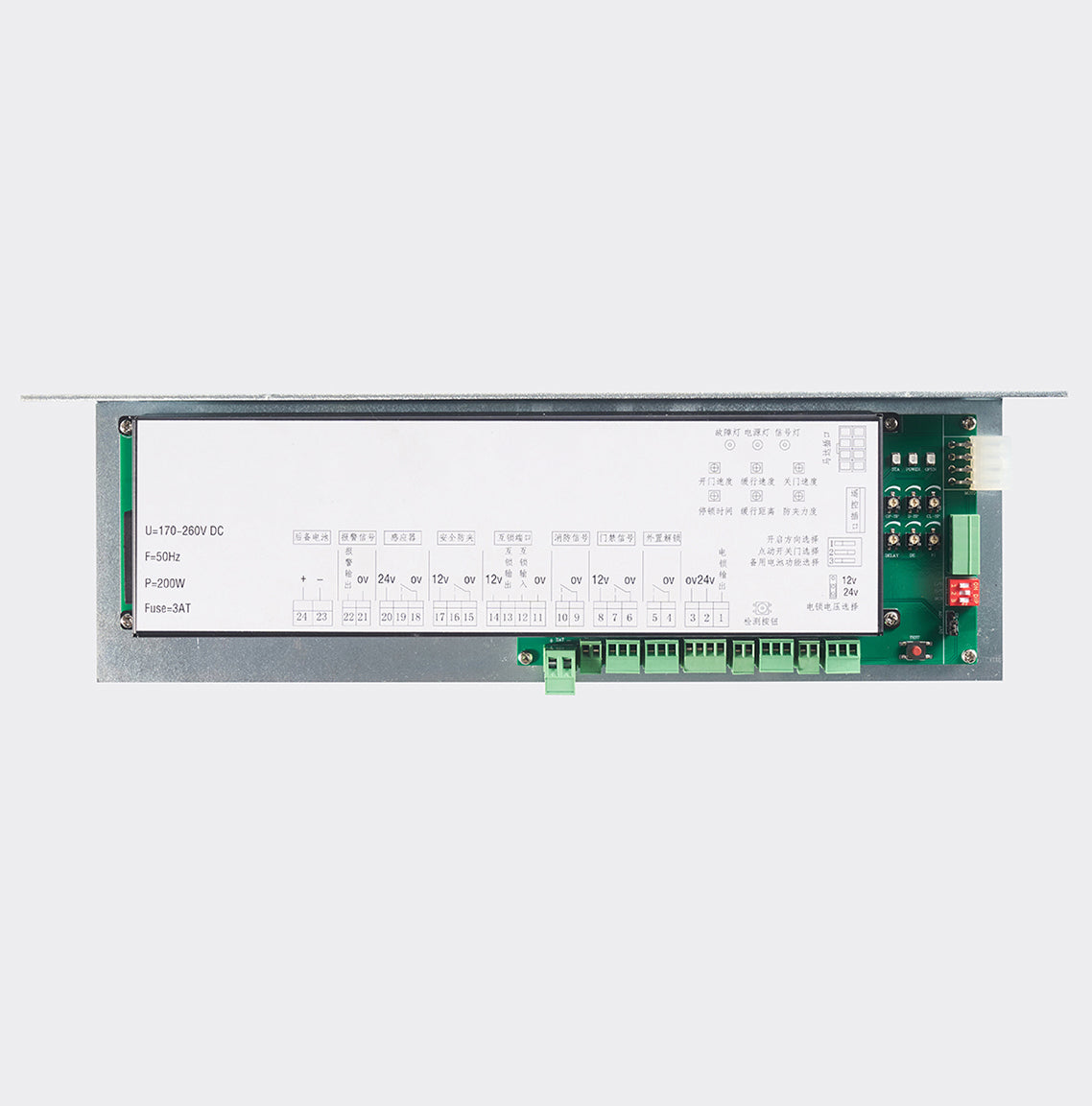

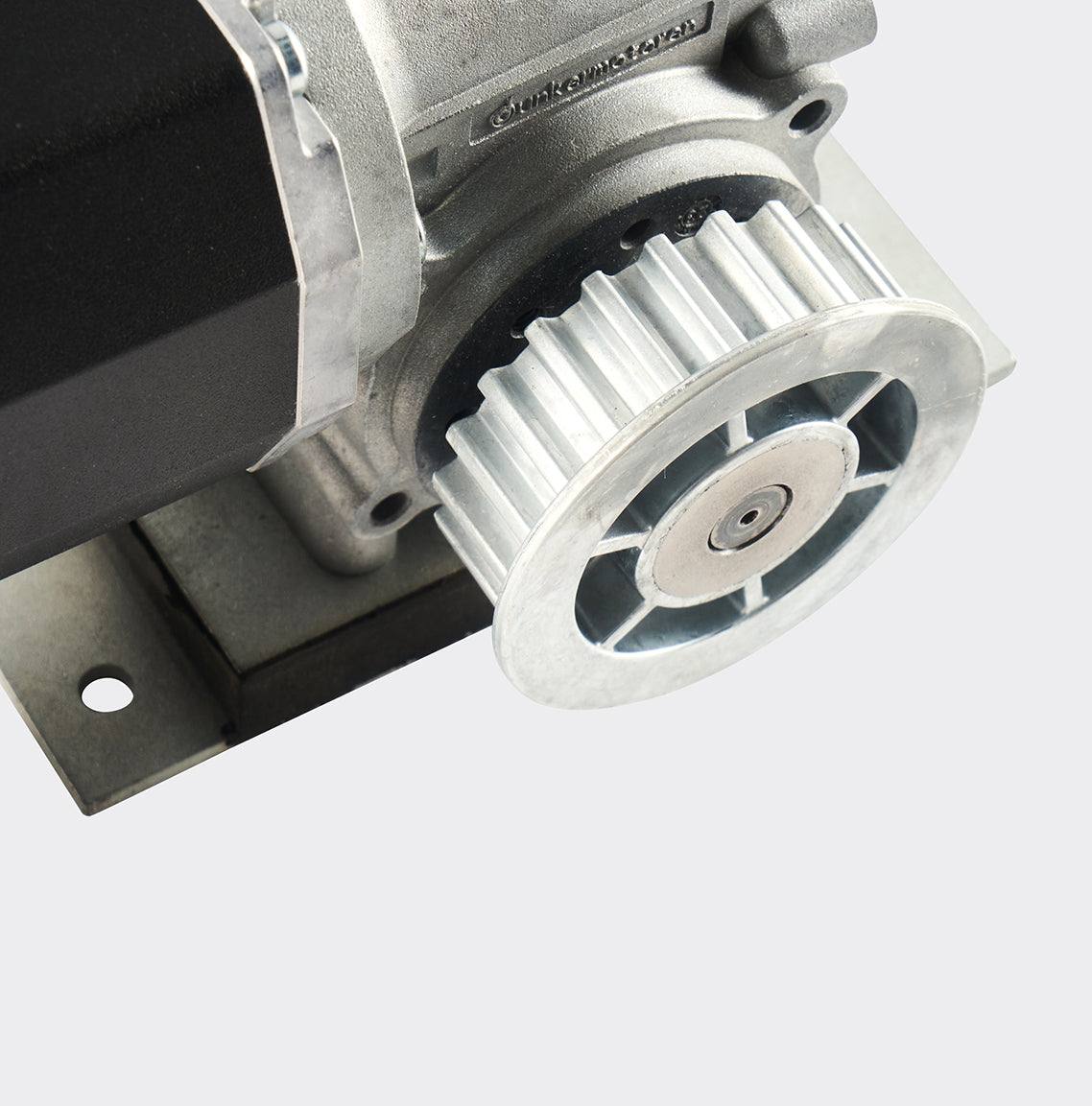

 | Dunkermotoren BG6 e-line X 30 ● DIN 18650 - 1 million test cycles at 4 000 cycles per day ● EB16005 |  | SL190 controller function programs ● Off ● Automatic ● Permanent open ● Partial open ● Exit only ● Night-bank switch |

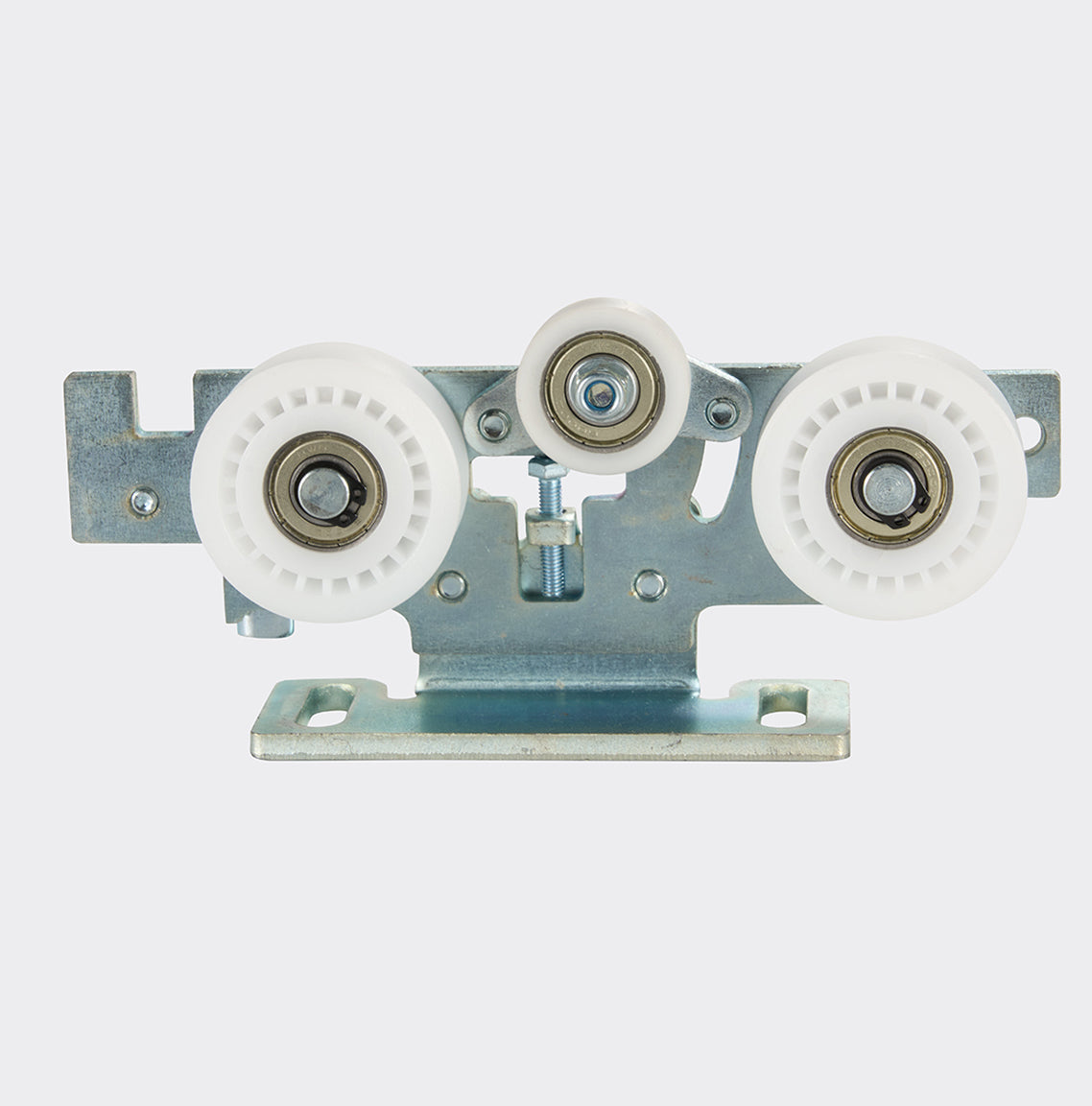

| High molecular polymer material, resistant to fatigue and wear |  | Noiseless Track with rubber strips |  |

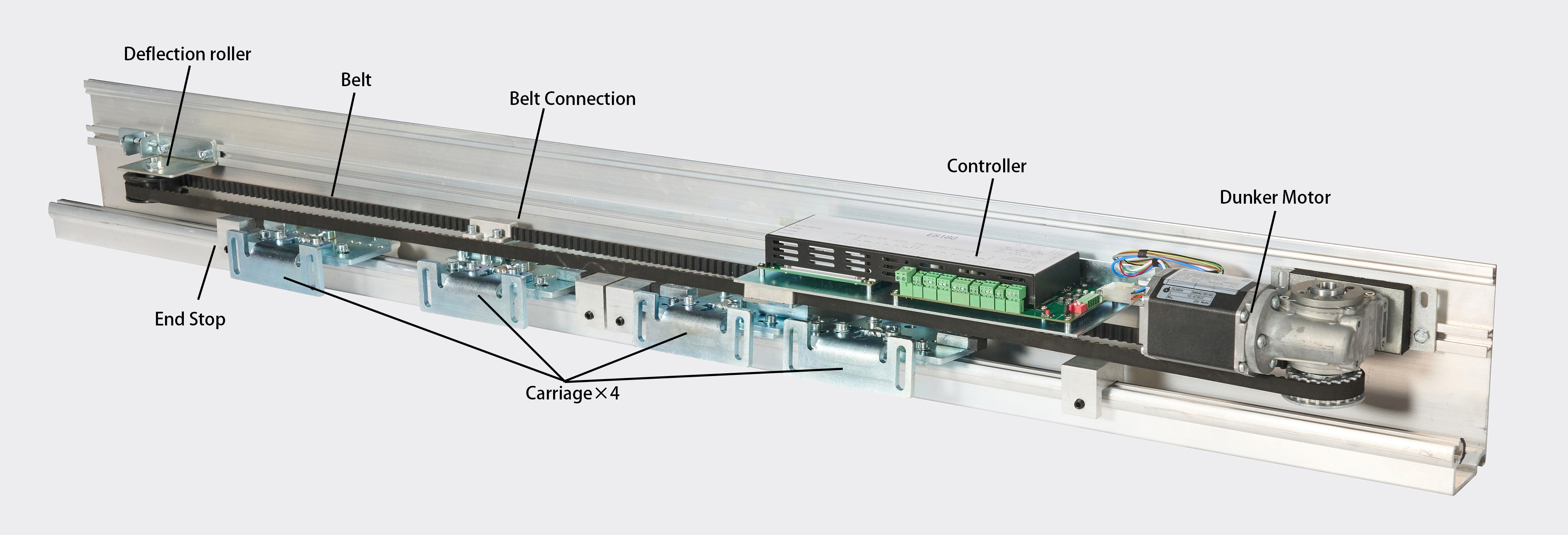

SL 190 automatic door system uses the German DUNKER brushless DC motor, which is equipped with a reliable power regulation electronic system. It has an automatic monitoring function, which can monitor the running status and results of the system to ensure that the system operates without failure. At the same time, the system has a self-check function. Through the various combinations of the LED lights on the electronic control panel, various failures occur.
| Door parameters | SL 190 |
| Single-panel sliding door -Transit width LW -Door panel weight, max. | 700-4000mm 1×180kg |
| Double-panel sliding door -Transit width LW - Door panel weight,max. | 800-4000mm 2×120kg |
| Clear passage height* | 2100-3200mm |
| *Other dimensions on request. | |
| Technical specification | |

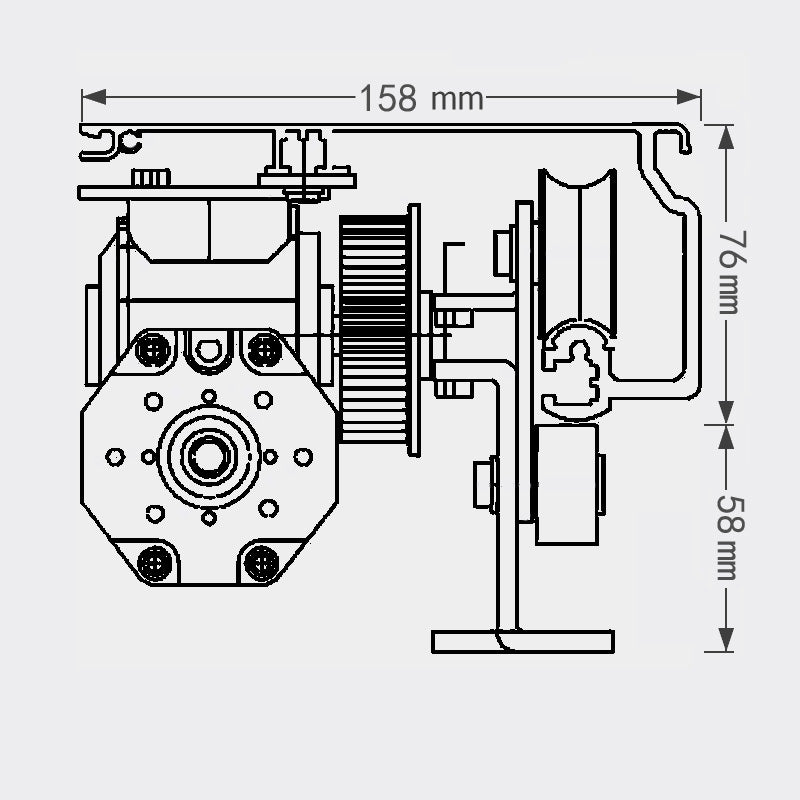

| Height | 100 and 150 mm |
| Depth | 180 mm |
| Opening and closing force max. 150 N | ● |
| Opening speed (incremental setting) | 10 - 50cm/s |
| Closing speed (incremental setting) | 10 - 40cm/s |
| Hold-open time | 0,5 - 30s |
| Mains voltage, frequency | 230V, 50/60 Hz |
| Power consumption | 180W |
| International protection | IP20 |
| Admissible temperature | -20 - + 60℃ |
| Admissible humidity (relative) | max. 93% (non condensing) |
